Sealey Fixed Frame Engine Crane with Extendable Legs 3 Tonne

Sealey Fixed Frame Engine Crane with Extendable Legs 3 Tonne

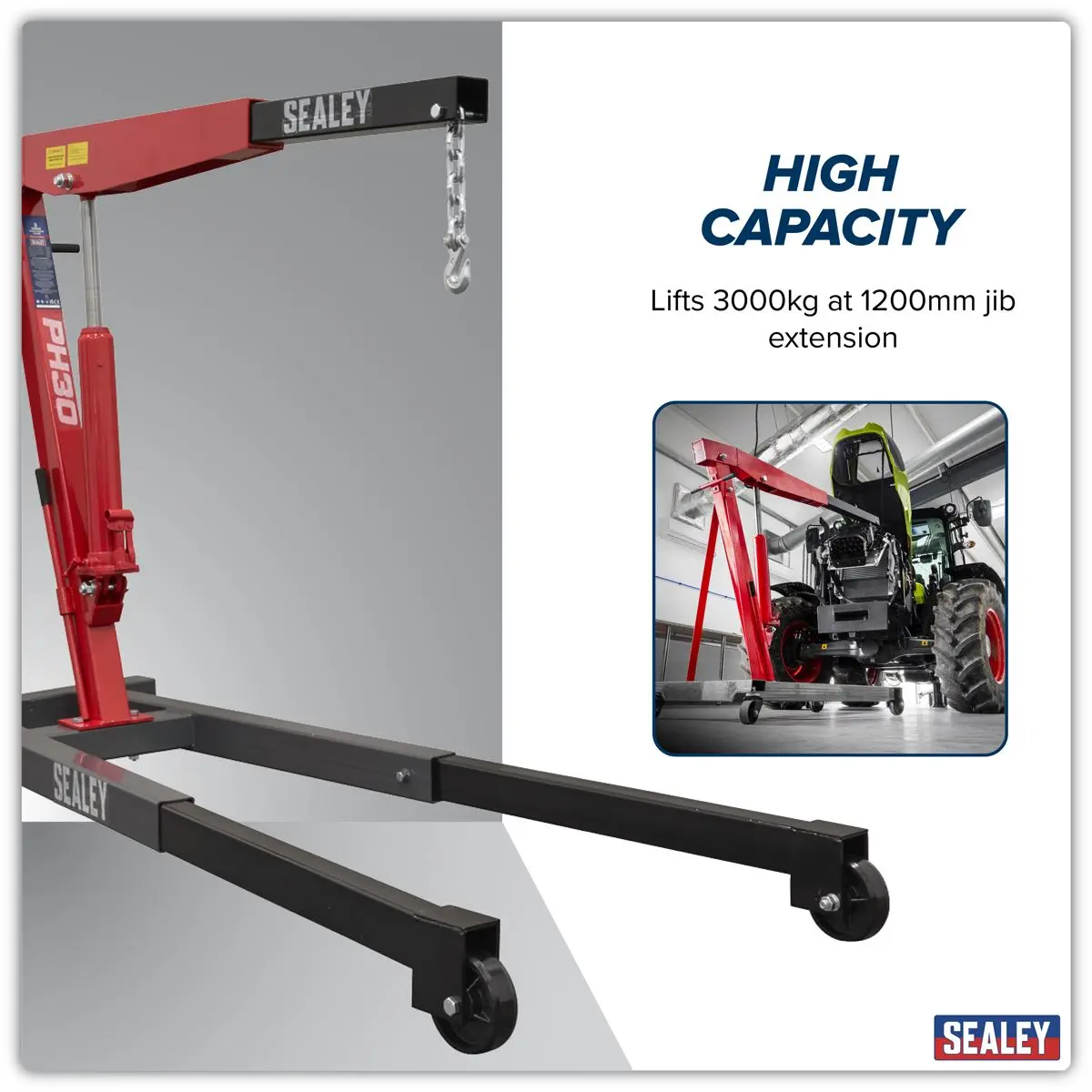

HIGH CAPACITY - Lifts 3000kg at 1200mm jib extension.

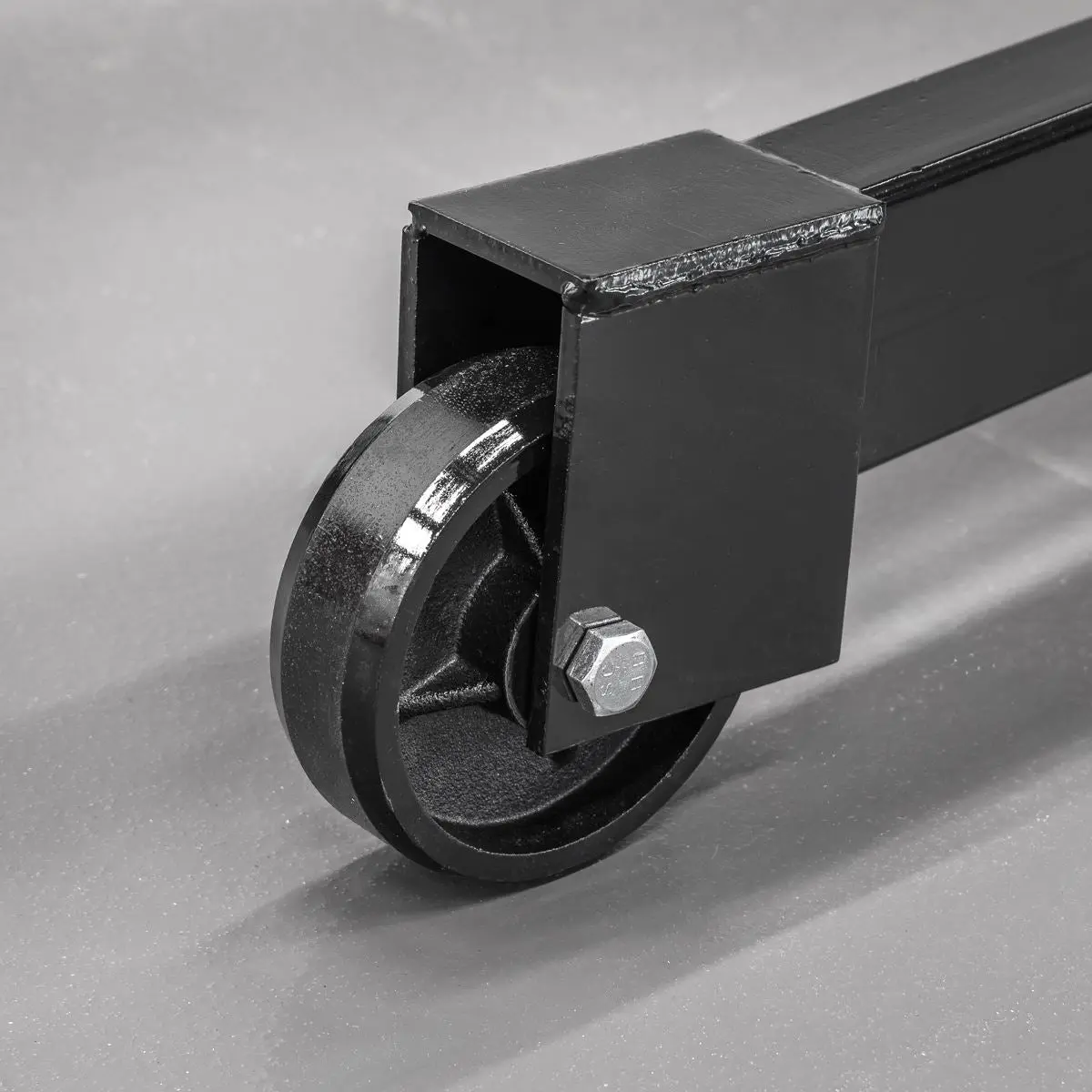

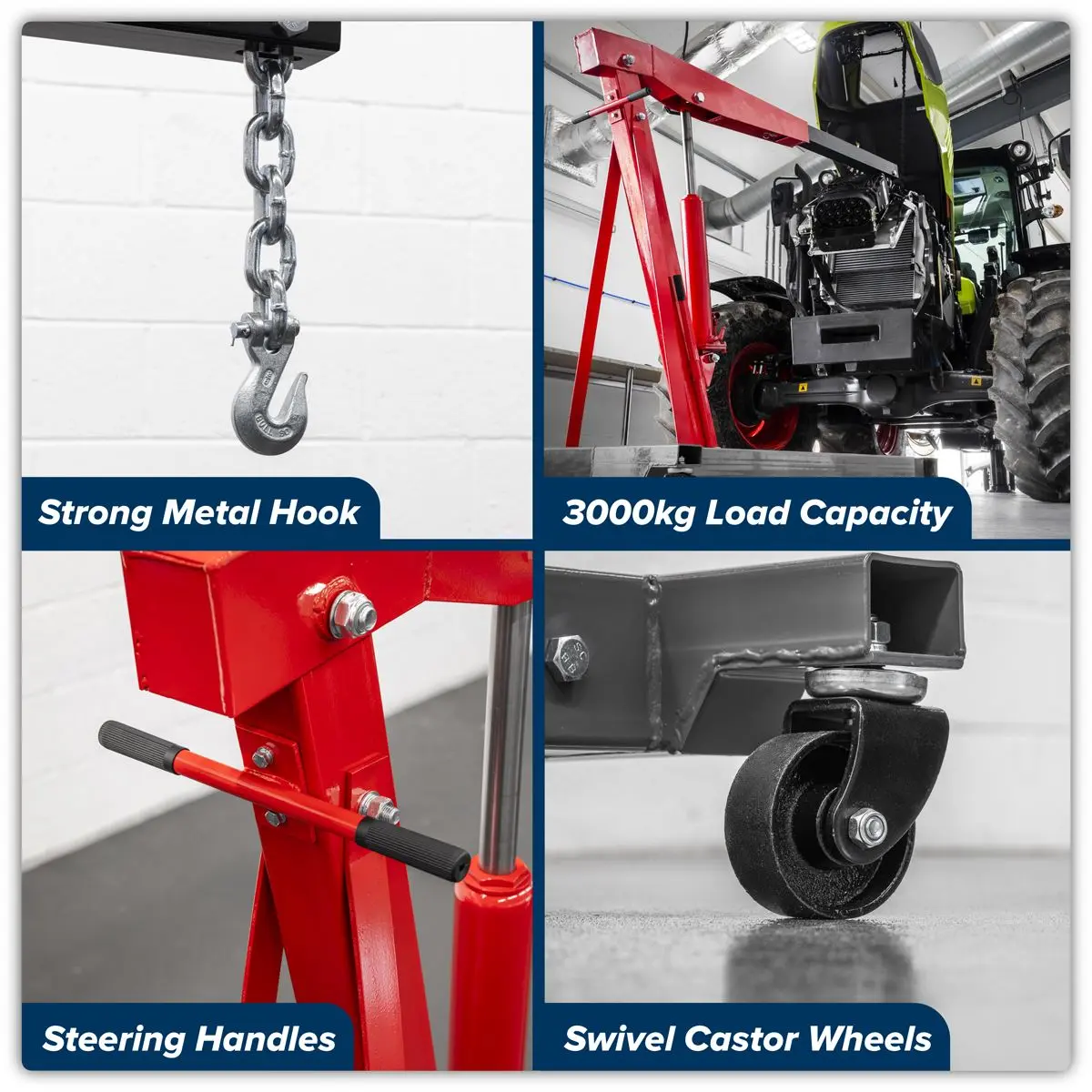

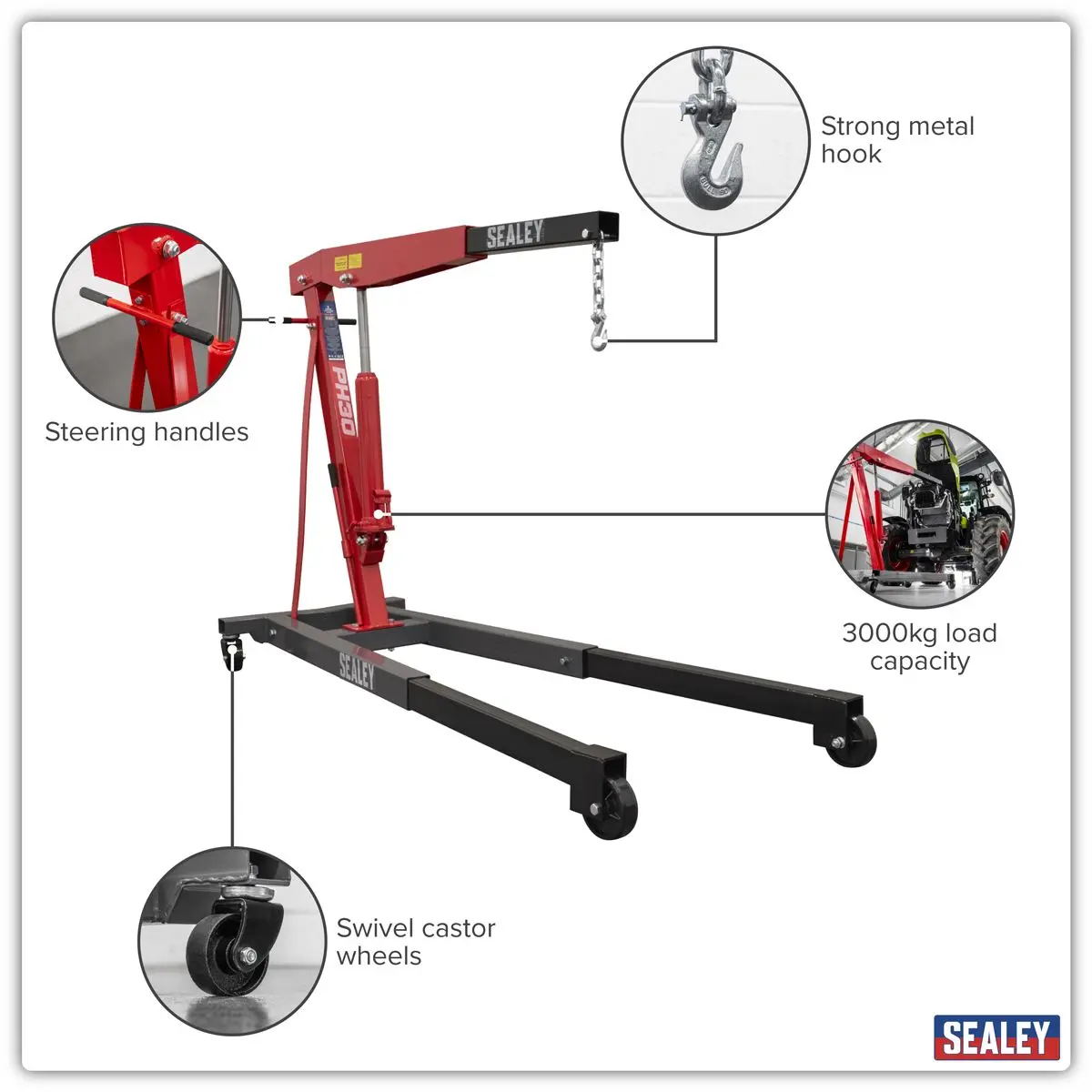

EASY MANOEUVRABILITY - Heavy-duty fixed front wheels and rear castors.

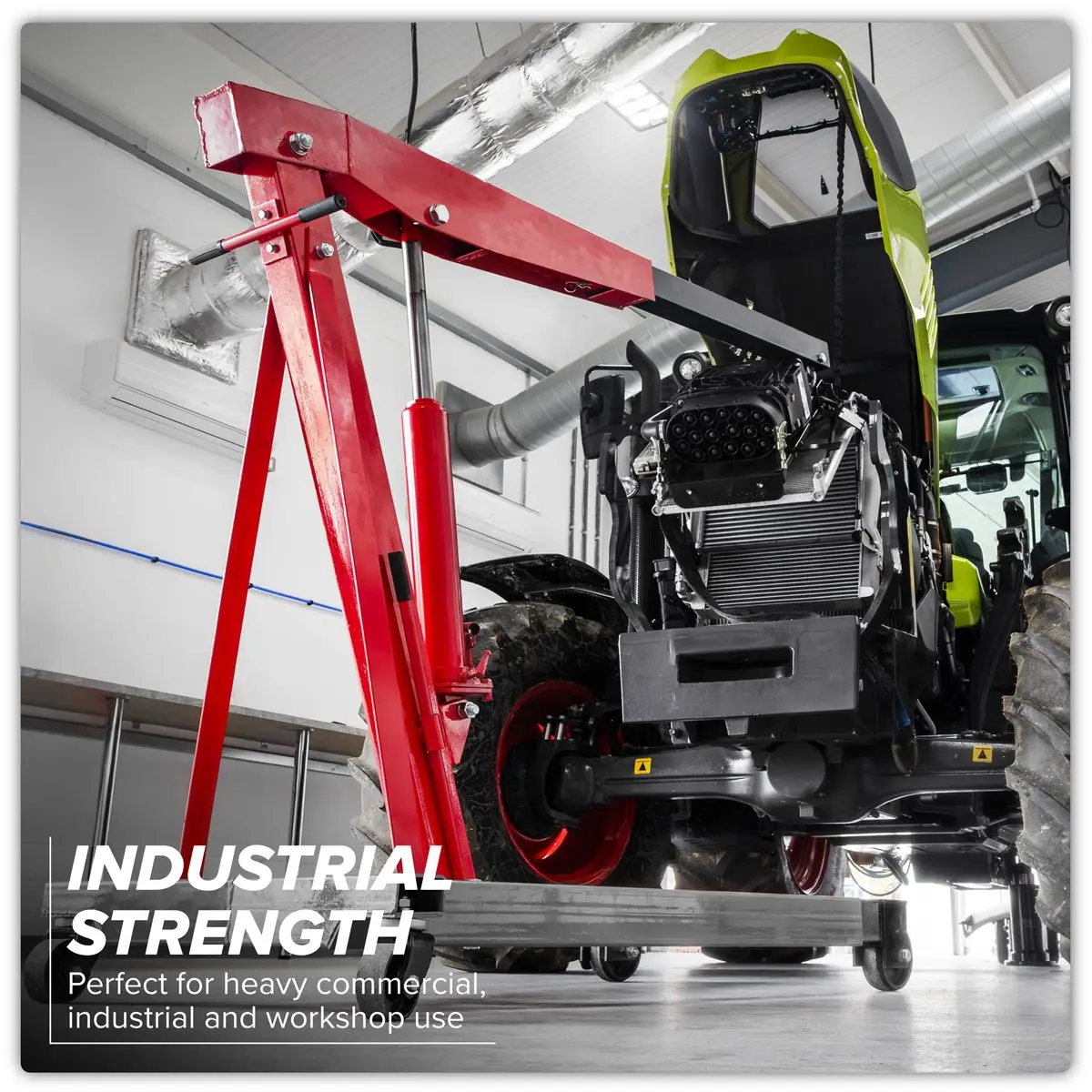

INDUSTRIAL STRENGTH - Perfect for heavy commercial, industrial and workshop use.

STABLE - Extendable legs for improved stability, particularly when operating at maximum jib extensions.

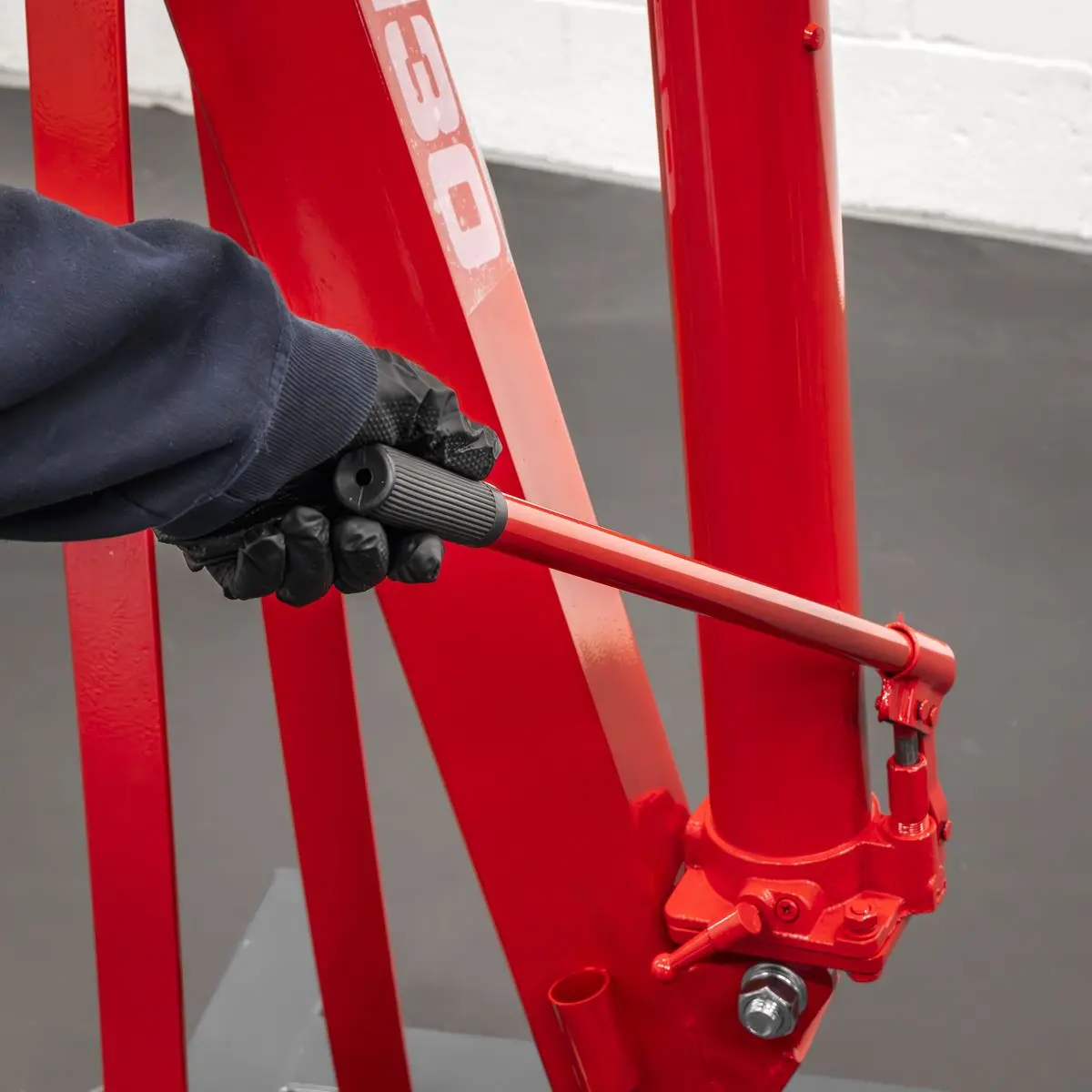

SIMPLE ACCESS - Pump access from the side for safe handling of heavy loads.

Delivered in knock-down form for reduced freight cost.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No PH30
• Brand: Sealey
• Height Jib Down: 1610mm
• Height Legs Folded: n/a
• Height of Frame: 195mm
• Length Legs Extended: 950mm

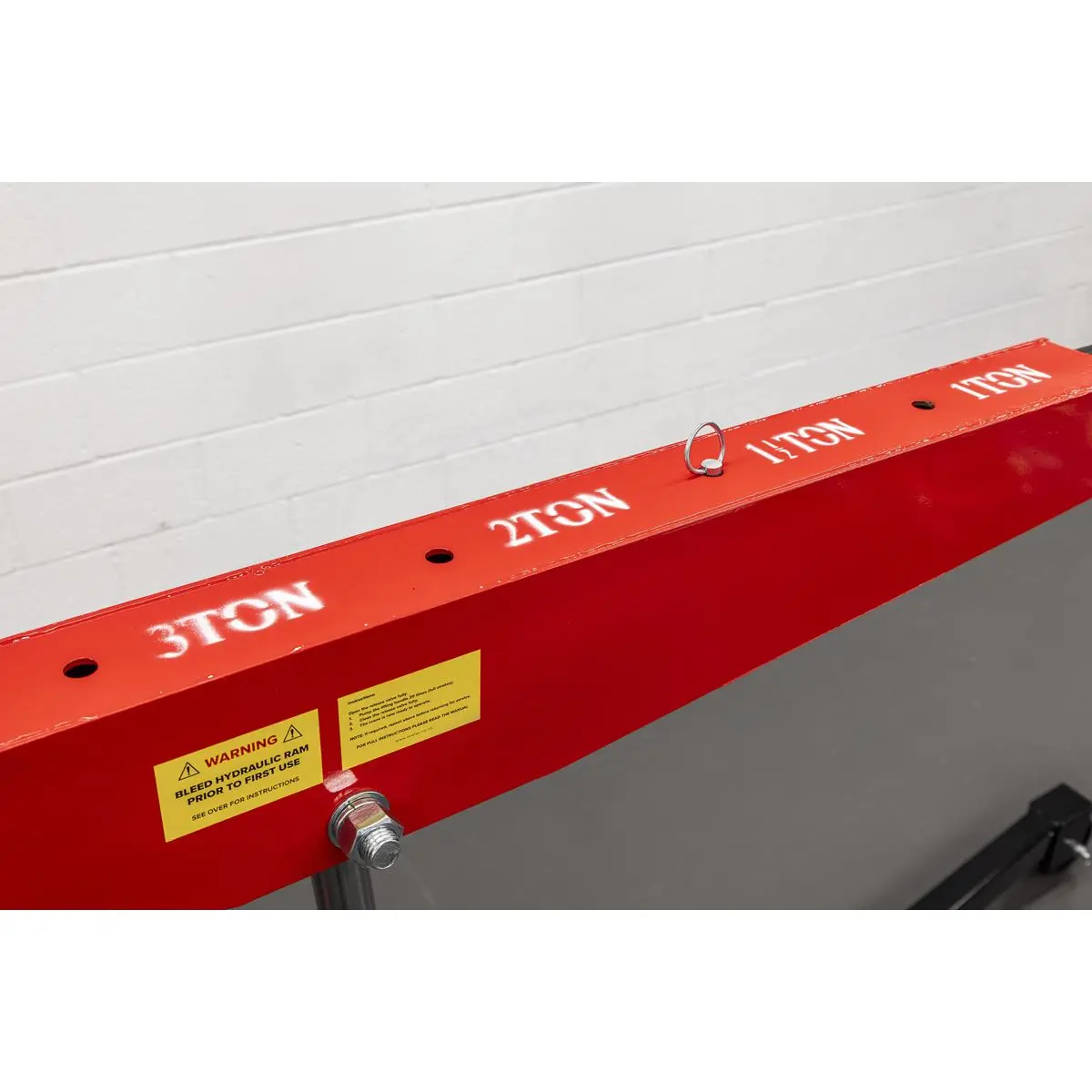

• Length of Jib Position 1: 1200mm
• Length of Jib Position 2: 1400mm
• Length of Jib Position 3: 1610mm
• Length of Jib Position 4: 1820mm
• Length of Jib Position 5: n/a
• Lifting Capacity in Position 1: 3000kg
• Lifting Capacity in Position 2: 2000kg
• Lifting Capacity in Position 3: 1500kg
• Lifting Capacity in Position 4: 1000kg
• Lifting Capacity in Position 5: n/a
• Max. Lift Ht at Jib Position 1: 1880mm
• Max. Lift Ht at Jib Position 2: 1970mm
• Max. Lift Ht at Jib Position 3: 2010mm
• Max. Lift Ht at Jib Position 4: 2220mm
• Max. Lift Ht at Jib Position 5: n/a
• Nett Weight: 155kg
• Note: *Legs Extended
• Rear Width: 780mm
• Width Front Frame: 855mm*
• Width Inside Front Frame: 700mm*
• Width Inside Front Frame: 700mm*

Product Guarantee: 1 Year
Catalogue Page: Page 889

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
